OASISRef. SXTP200F

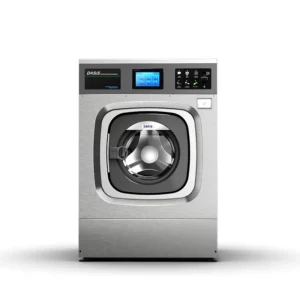

20KG Coin-Operated Softmount Washer Extractor
The 20KG Coin-Operated Softmount Washer Extractor is designed for high efficiency and durability in commercial laundry settings. Its stainless steel construction ensures longevity while the advanced electronic balancing system enhances performance and ease of use.
With a standard configuration that includes multiple chemical compartments and an innovative suspension system, it brings efficiency and reliability to your laundry operations.
- Capacity
- 20kg
- G-force
- 300
- Spin speed
- 890rpm
- Drum volume
- 185L
- Capacité 20 kg
- Tambour en acier inoxydable
- Suspension à équilibrage électronique
- Commande tactile multilingue
Product features
Built for daily operation
- Stainless steel drum and tub.
- Clad steel panels resistant to rust and fingerprints.
- 3D embossed honeycomb inner drum with perforated lifters.
- Permanently lubricated bearings.
- Advanced suspension with intelligent electronic balancing system.
- Machined and painted cast components.
- Four detergent compartments and five hoses for dosing pumps.
- Mechanical and electronic double door locking.
- Variable-frequency drive system.
- Front and rear access for maintenance.
- Full-color touchscreen: 50 on-premise laundry (OPL) programs and 6 self-service programs.
- Customizable programming and multilingual interface.
- USB connectivity and networking functions.
- Remaining time indicator.
- Payment options: coins, card, mobile payments and centralized payment system.
Technical specifications
Model SXTP200F in figures
Data for model SXTP200F only.
| Capacity | 20 kg |
|---|---|
| Drum diameter | 683 mm |
| Drum depth | 504 mm |
| Drum volume | 185 L |
| Door center height | 670 mm |
| Control | Touch |
|---|---|
| Activation mode | OPL / Vend |
| Motor power | 1.2 kW |
| Single-phase heating power | 6 kW |
| Three-phase heating power | 9 kW |
| Spin speed | 890 rpm |
| G-force | 300 |
| Overall width | 900 mm |
|---|---|
| Overall depth | 1058 mm |
| Overall height | 1358 mm |
| Net weight | 400 kg |
| Packed width | 1000 mm |
| Packed depth | 1130 mm |
| Packed height | 1457 mm |
| Cold water connection | 1/2 inch |
|---|---|
| Hot water connection | 1/2 inch |
| Compressed air connection (steam heating only) | 8 unit shown as "inch" in the PDF |
| Drain diameter | 76 mm |
| Power supply | 220 V / 50–60 Hz / 1 ph; electric heating : 380 V / 50–60 Hz / 3 ph |
